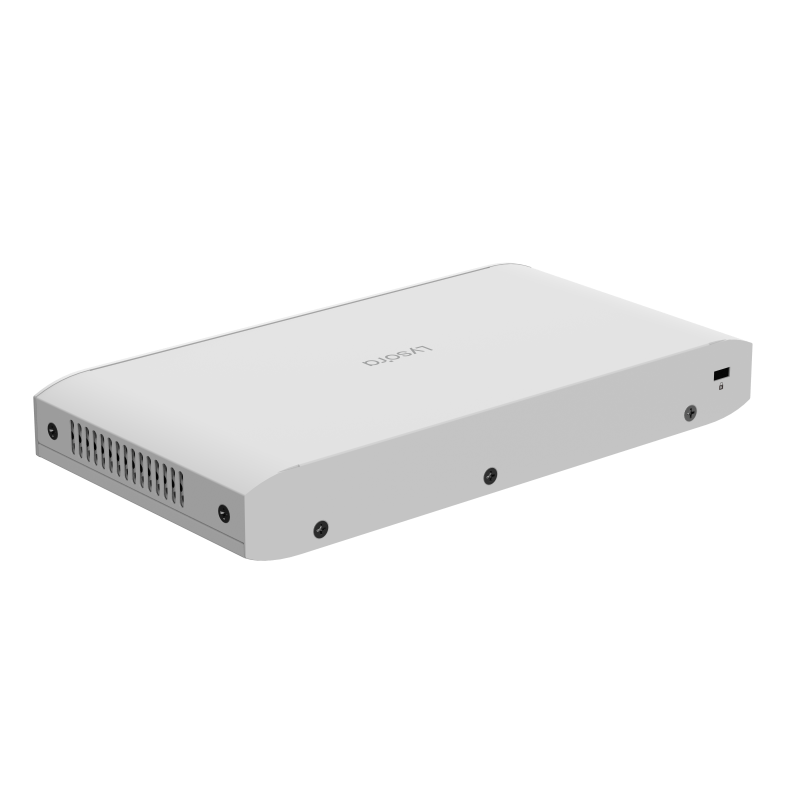

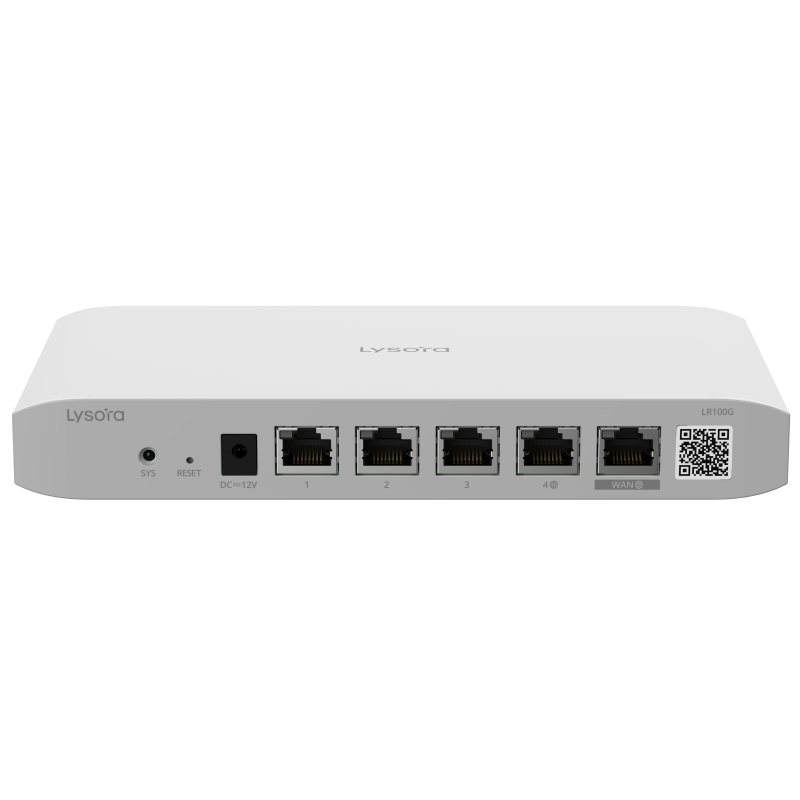

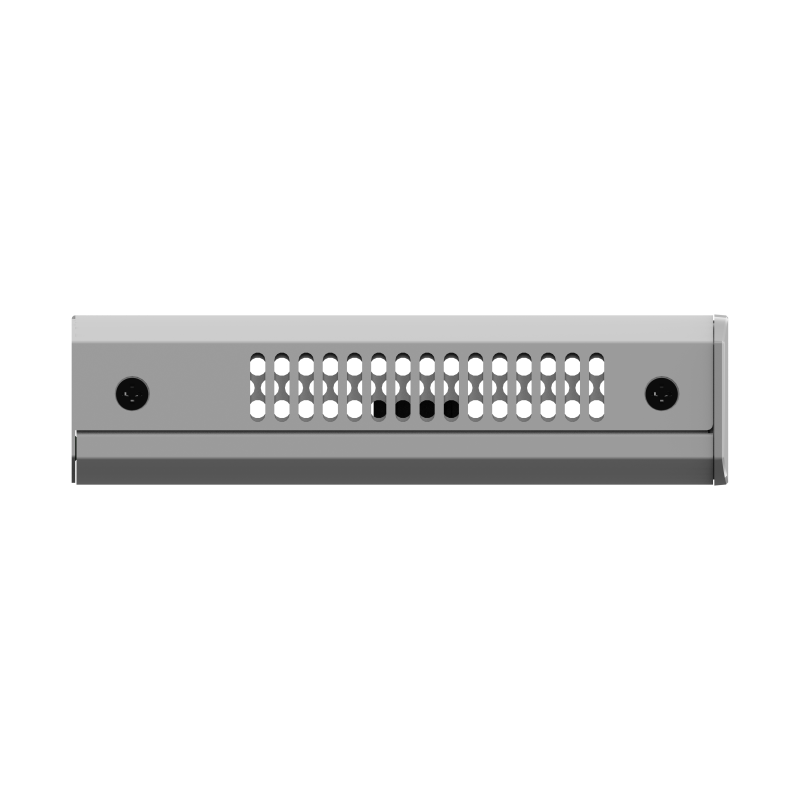

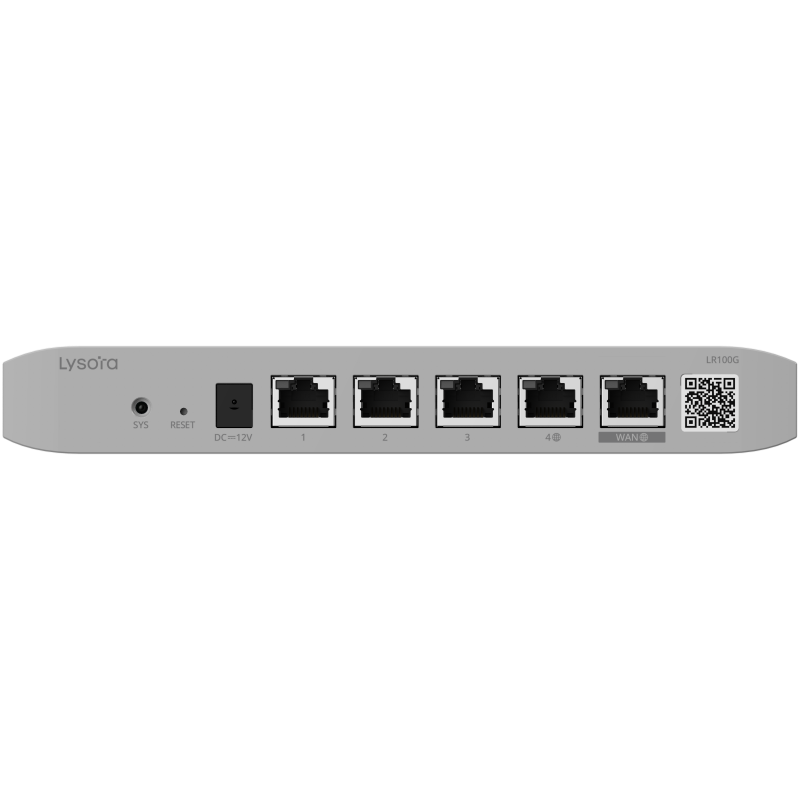

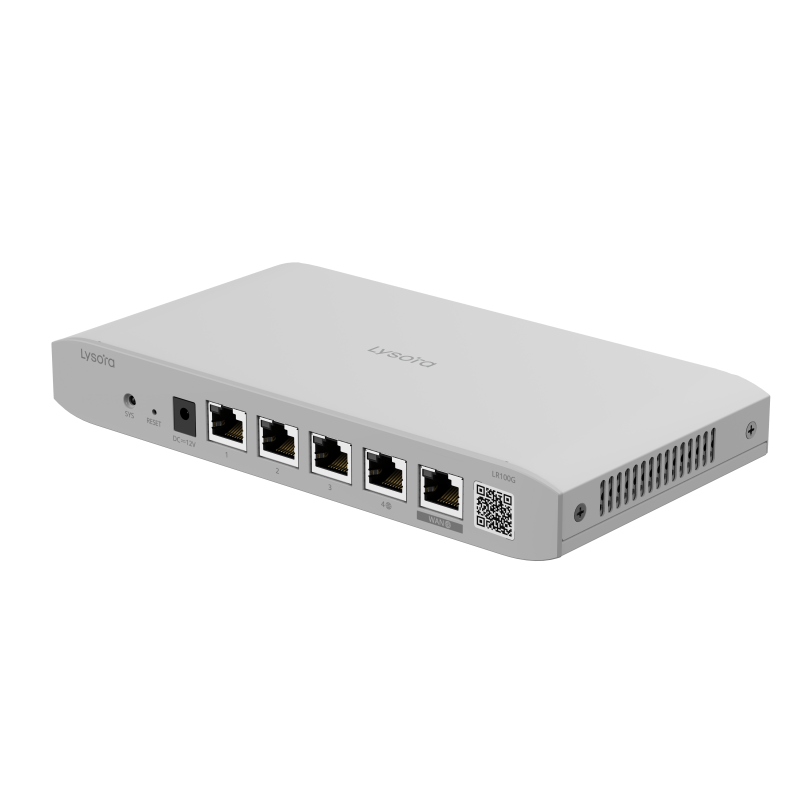

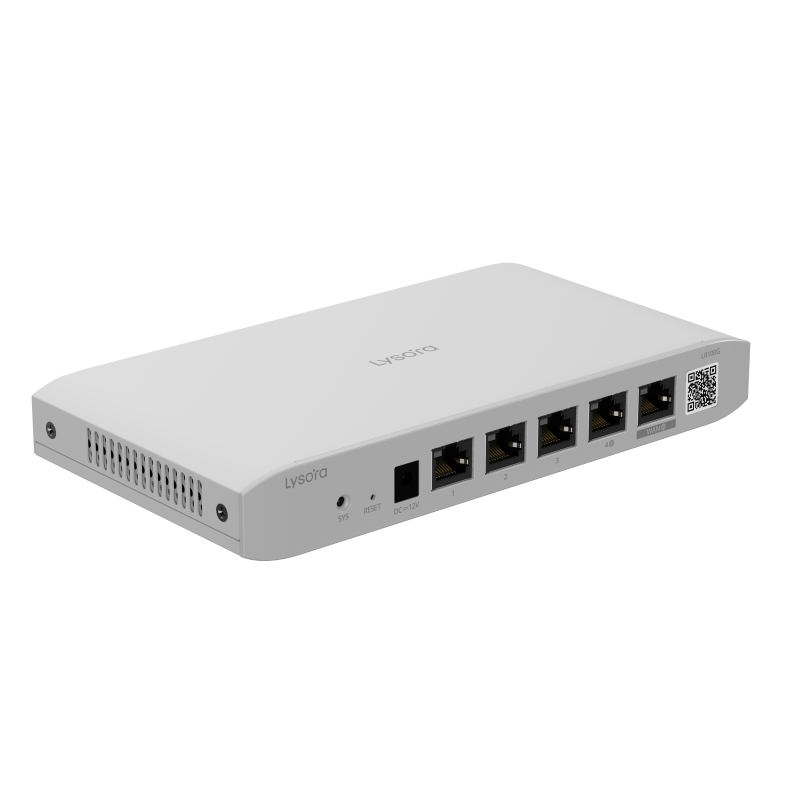

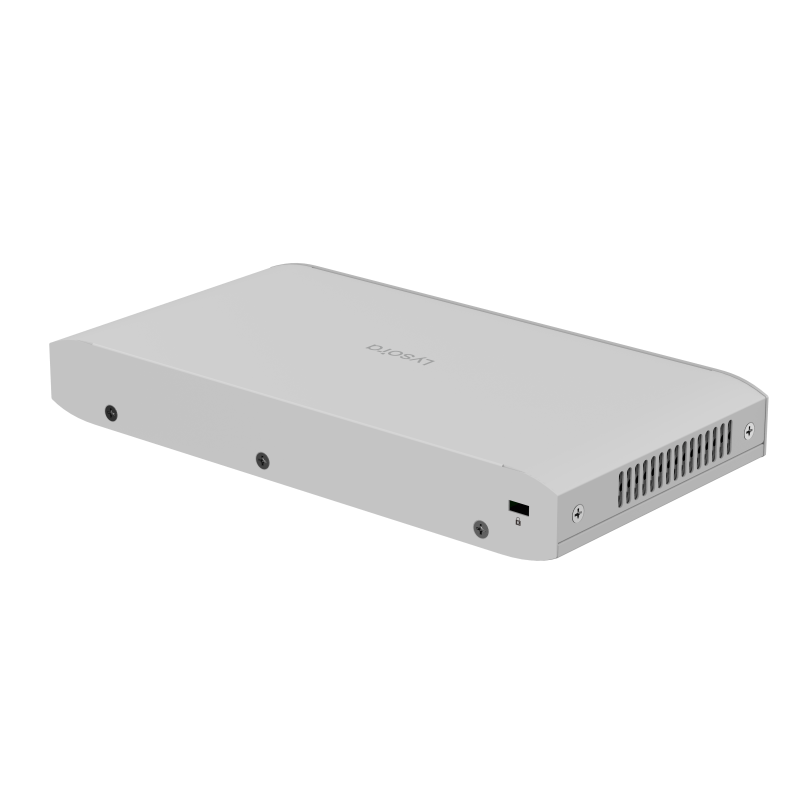

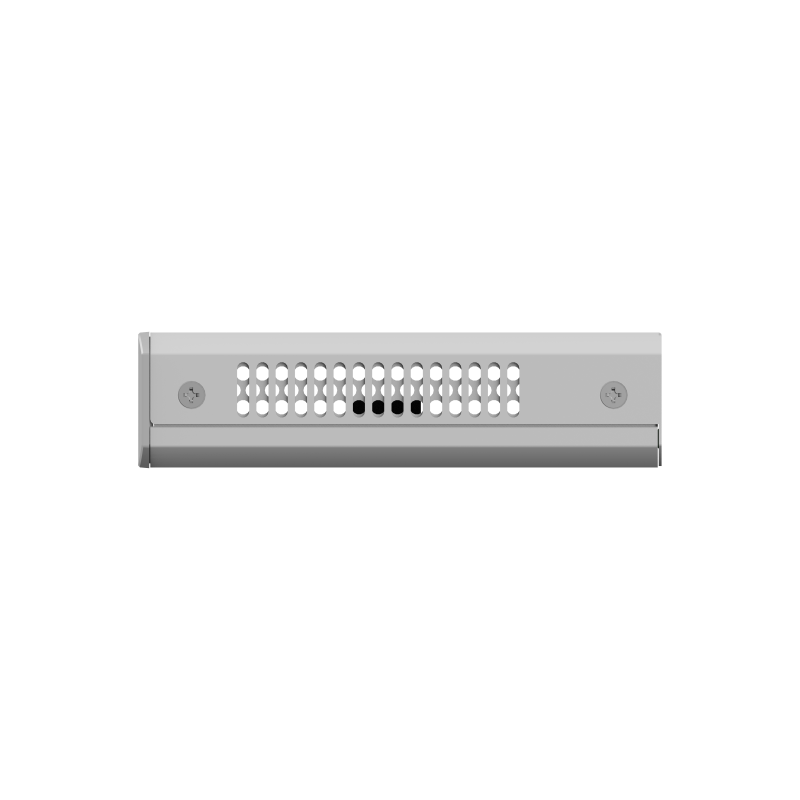

LR100G
5-Port Cloud Managed Router
- 5-Port Gigabit Cloud-Managed Router
- 5 x 1GE service ports, support up to 2 WAN links
- 100 concurrent users
- 600 Mbps (1000 Mbps in Turbo mode)
Technical
Overview
| Product dimensions | 206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1 in.) |
| Weight | 0.85 kg (1.88 lbs)(with packaging materials) 0.41 kg (0.9 lbs)(without packaging materials) |
| Port Specifications |
Total number of RJ45 ports
5
Total number of optical ports
-
Number of 1GE SFP ports
-
Number of 10GE SFP+ ports
-
Number of 10/100/1000BASE-T ports
5
Number of 10/100/1000/2500BASE-T ports
-
Number of 100/1000/2.5G/5G/10GBASE-T ports
-
Maximum number of LAN port
4
Maximum number of WAN ports
2
Number of fixed LAN ports
3
Number of fixed WAN ports
1
Number of LAN/WAN ports
1
|
| PoE Specifications |
Number of PoE/PoE+ Out ports
-
Number of PoE/PoE+/PoE++ Out ports
-
PoE budget
-
PoE power pins
-
|
| Enclosure Material | Plastic |

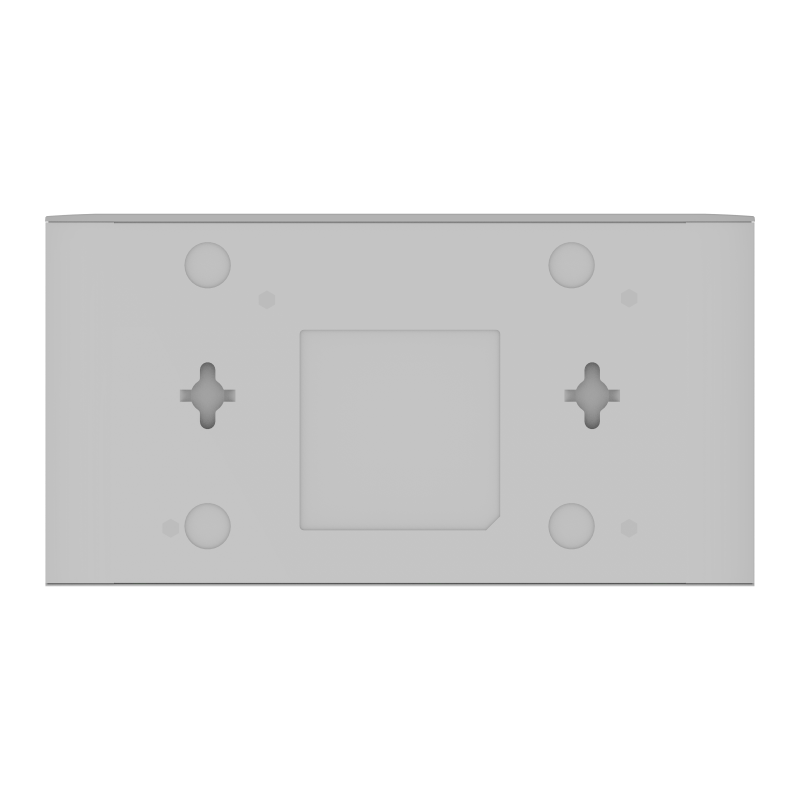

| Mounting Type | Desktop Mounting, Wall-mounted |
| Warranty | 3 years |
Hardware
| System Specifications |
CPU
Dual-core processor, 880 MHz clock frequency per core
Flash memory
32 MB
RAM
128 MB
eMMC
-
USB port
-
Hard disk
-
LEDs
1 x system status LED
5 x Ethernet port LEDs
Buttons
1 x reset button
|
| System Performance Capacity |
Maximum number of concurrent sessions
12000
Recommended number of concurrent clients
100
Throughput
1000 Mbps (Turbo Mode)
600 Mbps (Normal Mode)
|
| Power supply and Consumption |
Power Method
DC adapter:
Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz (optional)
Rated input current: 1 A
Output:
Rated output voltage: 12 V DC
Maximum output current: 1 A
Dimensions of the DC connector
Outer Diameter: 5.5 mm
Inner Diameter: 2.1mm
Depth: 10 mm
Max. Power Consumption
5W
|
| Environment and Reliability |
Surge protection
Service port: ±4 kV for common mode
Power connector: ±2 kV for common mode and ±1 kV for differential mode
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
-40°C to +70°C (-40°F to +158°F)
Operating humidity
10% RH to 90% RH (non-condensing)
Storage humidity
5% RH to 95% RH (non-condensing)
Fan
Fanless
Cooling
Natural cooling
ESD protection
Contact discharge: 4 kV
Air discharge: 6 kV
|
Software
| Basic Configurations |
Working mode
AC mode
Routing mode
Internet access mode
PPPoE
DHCP
Static IP
Self Organizing Netowk
Yes
Maximum number of devices that can be managed
128
Maximum number of APs (routing mode)
32
Maximum number of APs (AC mode)
300
|
| Ethernet Switching |
VLAN
Yes
Maximum number of VLANs supported by all LAN interfaces
16
LLDP
No
RLDP
No
STP
No
|
| IP Routing |
Load balancing
Yes
Static routing
IPv4 and IPv6 Static route
Maximum number of IPv4 static routes
100
Maximum number of IPv6 static routes
100
PBR
IPv4 and IPv6 PBR
Number of IPv4 PBR entries
30
Number of IPv6 PBR entries
30
URL-based routing
Yes
RIP
Yes
Number of RIP routes
100
BGP
No
Number of BGP routes
-
OSPF
Yes
Number of OSPFv2 instances
2
Number of OSPF neighbors on a point-to-point interface
64
Number of OSPFv3 routes
1000
Number of dynamic IPv4 routes
1000
Number of dynamic IPv6 routes
1000
IS-IS
No
|
| Security |
ACL
Yes
DHCP snooping
No
IP-MAC binding
Yes
MAC address filtering
Yes
Security zone
Yes
Local attack defense
Yes
Limiting the number of connections
Yes
Multicast rate limit
No
Network sharing prevention
Yes
|
| Authentication |
Local portal authentication
SMS-based authentication
One-click authentication
Authorization-based authentication
QR code authentication
Authentication (IP address-based) across Layer 3 switches
Self-service logout
Cloud portal authentication
Custom portal page
Delivery through cloud portal page
One-click login to cloud portal page
Account-based authentication
Voucher authentication
SMS-based authentication supported by cloud portal page
Third-party authentication
WISPr for third-party portal authentication
Wi-FiDog for third-party portal authentication
MAB on Cloud
Yes
MAB for local authentication
Yes
MAB for RADIUS-based authentication
Yes
802.1X authentication
Yes
PPPoE authentication
Yes
|
| VPN & VPN Performance |
Site-to-Site VPN
IPsec VPN
WireGuard
Client-to-Site VPN
L2TP VPN
L2TP over IPSec VPN
OpenVPN
PPTP VPN
WireGuard
L2TP VPN bandwidth
130 Mbps
PPTP VPN bandwidth
190 Mbps
OpenVPN bandwidth
20 Mbps
IPsec VPN bandwidth
28 Mbps
IPv6 IPsec VPN bandwidth
28 Mbps
WireGuard performance
80 Mbps
L2TP over IPsec bandwidth
28 Mbps
SD-WAN
Yes
SD-WAN performance
80 Mbps
|
| Gateway Features |
User Behavior Management (UBM)
Yes
Application control
Yes
Flow control
Yes
Traffic audit
Yes
Audit log
Yes
Local storage of traffic audit logs
No
|
| IP Service |
ARP
Yes
Proxy ARP
No
Maximum number of ARP entries
1024
DDNS
Yes
DHCP
Yes
DNS
Yes
IPTV
Yes
IPv4/IPv6
Yes
NAT
Yes
Number of port mapping entries
256
UPnP
Yes
Multicast
No
|
| WLAN |
AP management
Wi-Fi
RF parameters
Managing clients
Configuring an allowlist and a blocklist
802.1X authentication
AP Mesh
WQoS
802.11k/v roaming
AP portal authentication
AP load balancing
AP LEDs
Layer 2 isolation
Configuring the power supply mode of the AP on Cloud
Maximum number of SSIDs
8
Client association
Yes
|
| Network Management and Monitoring |
Web management
Yes
Cloud management
Upgrading device software version through App
Restarting devices through App
Remotely monitoring devices through App
Self organizing network through code scanning
Cloud-based O&M
Cloud-based upgrade
Management on App
Yes
Web login information
Yes
HTTP login
Yes
HTTPS login
Yes
NTP
NTP client
Fault diagnosis
Yes
Telnet
No
SSH
No
File transfer
No
Syslog
Yes
SNMP
Yes
RLOG
Yes
Fan speed adjustment
No
Fault self-diagnosis
Yes
Stacking
No
VRRP
No
|
Compliance and Standard
| Certification and Regulatory Compliance |
NDAA Complain
Yes
EMC
-
Safety compliance
-
Certification
FCC, IC, cTUVus
|
Package Contents
| Device | Device 1 |
| Manual |
User Manual
1
Warranty Card
1
|
| Accessories |
Rubber pad
4
Power cord retention clip
-
Screw
-
Grounding cable
-
Power cord
1 x 1.5 m (4.92 ft.)
Rack-mount bracket
-
|
